C4-021
Technical Specifications
| Model: | C4-021 |
| Input: | AC/DC12V±5% |
| Brand: | OSRAM |
| LED Quantity: | 1 Pc |
| LED Power: | 1W |
| CCT: | 2700K~6000K |
| Warm white/Flux: | 3000K±200K / 105 Lm |
| Cool white/Flux: | 5000K±300K / 130 Lm |
| Beam Angle: | 20° |
| Size: | ∮23 x 145mm |
| Material: | Chrome |
Specifications
Size

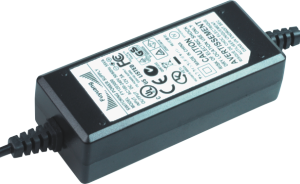

Driver
9A121-Z00
Input: AC100~240V / 50~60Hz
Output:DC12V / 2A
Max.24W
Size: 102 x 42 x 28mm
Certification: CE . UL . GS

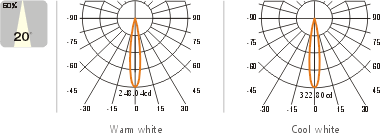

Photometric Data
Accessories
|
 |
 |
 |
 |
|
Item No. C9-001 Input:AC12V / 12.5A Material:PC+Aluminum Color:Chrome Size:11 x 8.2 x 1000mm Packing:1 P CS / Pack |
Item No.86768 / 69 / 70 Input:25A / 300W Material:PC+Aluminum Color:Transparent Size:1m / 1.5m / 2m Packing:1 P CS / Pack |
Item No.86061 / 63 / 65 Input:25A / 300W Material:PC+Copper Color:Transparent Size:1m / 1.5m / 2m Packing:1 P CS / Pack |
Item No.86041 / 43 / 45 Input:25A / 300W Material:PC+Copper+Aluminum Color:Silver Size:1m / 1.5m / 2m Packing:1 P CS / Pack |
Item No.86023 / 25 Input:25A / 300W Material:PC+Copper+Aluminum Color:Silver Size:1.5m / 2m Packing:1 P CS / Pack |
