D7-101

Technical Specifications
Model:D7-101
Input:DC3.2V
Current:350mA±5%
Brand:OSRAM
LED Quantity:1 Pc
LED Power:1W
CCT:2700K~6000K
Warm white/Flux:3000K±200K / 105 Lm
Cool white/Flux:5000K±300K / 130 Lm
Beam Angle:20°
Size:∮34 x H43mm
Cut-out size:∮30mm
Color:Chrome
Specifications
1W
  • Mini down light,Mini window display down light,Lighting display down light,LED cabinet light for ceiling,Led track light for display

Size

Driver

9A135-Z00 & 9A199-Z00(Dimmable)

Input: AC100~240V / 50~60Hz
Output: DC3~8V / 350mA
Max. 1W x 2
Size: 80 x 30 x 20 / 50 x 27 x 21mm
Certification: CE , UL

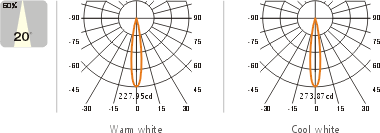

Photometric Data
