D5-316

These down lights can transform to ceiling lights when you matched with below rear cover (C9-011-C9-013)
Technical Specifications
Model:D5-316
Input:DC19.2V
Current:350mA±5%
Brand:OSRAM
LED Quantity:6 Pcs
LED Power:7W
CCT:2700K~6000K
Warm white/Flux:3000K±200K / 625 Lm
Cool white/Flux:5000K±300K / 780 Lm
Beam Angle:60°
Size:∮86 x H33mm
Cut-out size:∮83mm
Color:Silver
Specifications
7W
  • Mini down light,Mini window display down light,Lighting display down light,LED cabinet light for ceiling,Led track light for display
  • Mini down light,Mini window display down light,Lighting display down light,LED cabinet light for ceiling,Led track light for display

Product Descriptions

Size

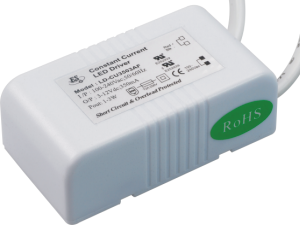

Driver

9A088-Z00

Input: AC100~240V / 50~60Hz
Output: DC3~36V / 350mA
Max.1W x8
Size:65 x 34 x 24mm
Certification: CE . UL

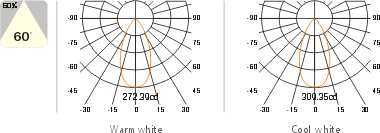

Photometric Data
