D5-313
These down lights can transform to ceiling lights when you matched with below rear cover (C9-011-C9-013)
Technical Specifications
| Model: | D5-313 |
| Input: | DC9.6V |
| Current: | 350mA±5% |
| Brand: | OSRAM |
| LED Quantity: | 3 Pcs |
| LED Power: | 3.5W |
| CCT: | 2700K~6000K |
| Warm white/Flux: | 3000K±200K / 310 Lm |
| Cool white/Flux: | 5000K±300K / 390 Lm |

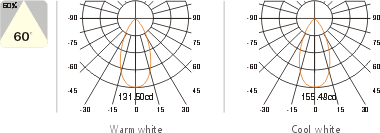

| Beam Angle: | 60° |
| Size: | ∮72 x H20mm |
| Cut-out size: | ∮67mm |
| Color: | Silver |
Specifications
Product Descriptions
Size
Driver
9A087-Z00
Input:AC100~240V / 50~60Hz
Output:DC3~12V / 350mA
Max.1W x3
Size:65 x 34 x 24mm
Certification: CE . UL
