D5-303

These down lights can transform to ceiling lights when you matched with below rear cover (C9-011-C9-013)
Technical Specifications
Model:D5-303
Input:DC9.6V
Current:350mA±5%
Brand:OSRAM
LED Quantity:3 Pcs
LED Power:3.5W
CCT:2700K~6000K
Warm white/Flux:3000K±200K / 310 Lm
Cool white/Flux:5000K±300K / 390 Lm
Beam Angle:60°
Size:∮72 x H20mm
Cut-out size:∮67mm
Color:Silver
Specifications
3.5W
  • Mini down light,Mini window display down light,Lighting display down light,LED cabinet light for ceiling,Led track light for display,
  • Mini down light,Mini window display down light,Lighting display down light,LED cabinet light for ceiling,Led track light for display,
  • Mini down light,Mini window display down light,Lighting display down light,LED cabinet light for ceiling,Led track light for display,

Product Descriptions

Size

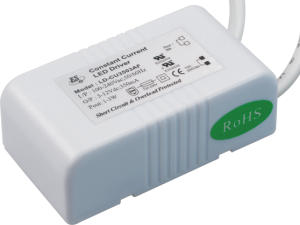

Driver

9A087-Z00

Input:AC100~240V / 50~60Hz
Output:DC3~12V / 350mA
Max.1W x3
Size:65 x 34 x 24mm
Certification: CE . UL

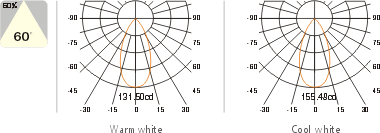

Photometric Data
