LED Grid down light, Grid down lights, Double heads down light, Down light, Grid down light factory-AIXENLITE

G4-039

Technical Specifications
Model:G4-039
Input:DC12.8V
Current:350mA±5%
Brand:OSRAM
LED Quantity:4 Pcs
LED Power:5W
CCT:2700K~6000K
Warm white/Flux:3000K±200K / 415 Lm
Cool white/Flux:5000K±300K / 520 Lm
Beam Angle:20°
Size:L78 x W78 x H22mm
Cut-out size:L70 x W70mm
Color:Silver
Specifications
5W
  • LED Grid down light, Grid down lights, Double heads down light, Down light, Grid down light factory
  • LED Grid down light, Grid down lights, Double heads down light, Down light, Grid down light factory
  • LED Grid down light, Grid down lights, Double heads down light, Down light, Grid down light factory

Size


Driver

 9A088-Z00


Input: AC100~240V / 50~60Hz
Output: DC3~36V / 350mA
Max.1W x8
Size:65 x 34 x 24mm
Certification: CE . UL

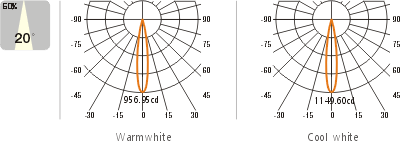

Photometric Data
