G4-113

Technical Specifications
Model:G4-113
Input:DC9.6V
Current:350mA±5%
Brand:OSRAM
LED Quantity:3 Pcs
LED Power:3.5W
CCT:2700K~6000K
Warm white/Flux:3000K±200K / 310 Lm
Cool white/Flux:5000K±300K / 390 Lm
Beam Angle:20°

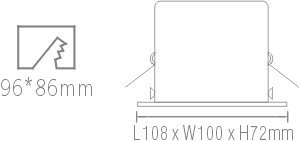

Size:L108 x W100 x H72mm
Cut-out size:L96 x W86mm
Color:Silver
Specifications
3.5W
  • Grid down light factory, LED Grid down light, Grid down light manufacturer, Double heads down light, Grid down light

Size


Driver

9A087-Z00

Input:AC100~240V / 50~60Hz
Output:DC3~12V / 350mA
Max.1W x3
Size:65 x 34 x 24mm
Certification: CE . UL

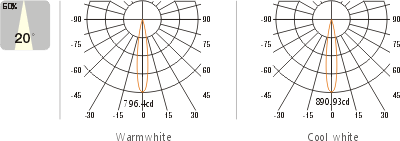

Photometric Data
