G4-114
Technical Specifications
| Model: | G4-114 |
| Input: | DC19.2V |
| Current: | 350mA±5% |
| Brand: | OSRAM |
| LED Quantity: | 6 Pcs |
| LED Power: | 7W |
| CCT: | 2700K~6000K |
| Warm white/Flux: | 3000K±200K / 625 Lm |
| Cool white/Flux: | 5000K±300K / 780 Lm |

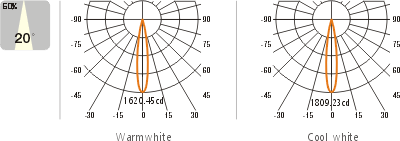

| Beam Angle: | 20° |

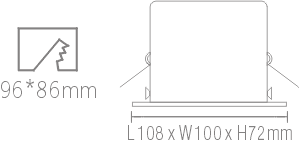

| Size: | L108x W100 x H72mm |
| Cut-out size: | L96 x W86mm |
| Color: | Silver |
Specifications
Size
Driver
9A088-Z00
Input: AC100~240V / 50~60Hz
Output: DC3~36V / 350mA
Max.1W x8
Size:65 x 34 x 24mm
Certification: CE . UL
