G4-023

Technical Specifications
Model:G4-023
Input:DC9.6V
Current:350mA±5%
Brand:OSRAM
LED Quantity: 6 Pcs
LED Power:7W
CCT:2700K~6000K
Warm white/Flux:3000K±200K / 625 Lm
Cool white/Flux:5000K±300K / 780 Lm
Beam Angle:20°
Size:L172x W100 x H39mm
Cut-out size:L160 x W86mm
Color:Silver
Specifications
7W
  • Grid Down Light, Double heads down light, LED Grid down light, Grid down lights, Grid down light factory

Size

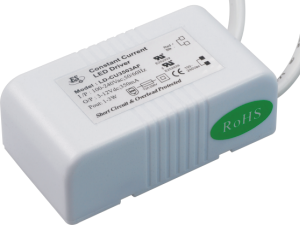

Driver

 9A087-Z00

Input:AC100~240V / 50~60Hz
Output:DC3~12V / 350mA
Max.1W x3
Size:65 x 34 x 24mm
Certification: CE . UL

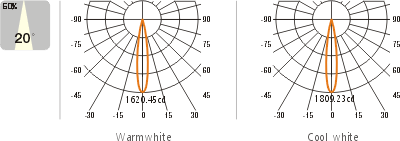

Photometric Data


Electrical Connection Drawing
