G4-044

Technical Specifications
Model:G4-044
Input:DC19.2V
Current:350mA±5%
Brand:OSRAM
LED Quantity:18 Pcs
LED Power:21.5W
CCT:2700K~6000K
Warm white/Flux:3000K±200K / 1870 Lm
Cool white/Flux:5000K±300K / 2340 Lm
Beam Angle:20°

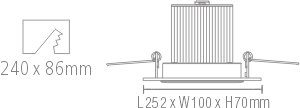

Size:L252x W100 x H70mm
Cut-out size:L240 x W86mm
Color:Silver
Specifications
21.5W
  • Grid down light factory,  LED Grid down light, Grid down light manufacturer, Down light, Two heads down light
  • Grid down light factory,  LED Grid down light, Grid down light manufacturer, Down light, Two heads down light
  • Grid down light factory,  LED Grid down light, Grid down light manufacturer, Down light, Two heads down light

Size

Driver

9A088-Z00

Input: AC100~240V / 50~60Hz
Output: DC3~36V / 350mA
Max.1W x8
Size:65 x 34 x 24mm
Certification: CE . UL

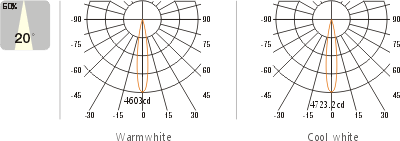

Photometric Data

Electrical Connection Drawing
