G4-043

Technical Specifications
Model:G4-043
Input:DC19.2V
Current:350mA±5%
Brand:OSRAM
LED Quantity:12 Pcs
LED Power:14.5W
CCT:2700K~6000K
Warm white/Flux:3000K±200K / 1250 Lm
Cool white/Flux:5000K±300K / 1560 Lm
Beam Angle:20°
Size:L172x W100 x H70mm
Cut-out size:L160 x W86mm
Color:Silver
Specifications
14.5W
  • Led Grid Down Light, Grid down light, Down light, Three heads down light, Grid down light manufacturer
  • Led Grid Down Light, Grid down light, Down light, Three heads down light, Grid down light manufacturer
  • Led Grid Down Light, Grid down light, Down light, Three heads down light, Grid down light manufacturer

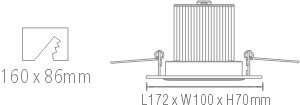

Size

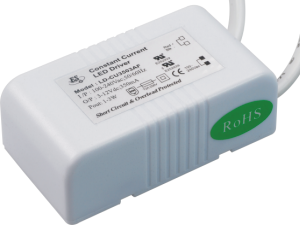

Driver

9A088-Z00

Input: AC100~240V / 50~60Hz
Output: DC3~36V / 350mA
Max.1W x8
Size:65 x 34 x 24mm
Certification: CE . UL

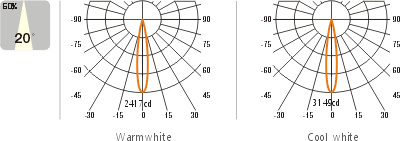

Photometric Data


Electrical Connection Drawing
