D8-019
Technical Specifications
| Model: | D8-019 |
| Input: | DC28.8V |
| Current: | 350mA±5% |
| Brand: | OSRAM |
| LED Quantity: | 9 Pcs |
| LED Power: | 11W |
| CCT: | 2700K~6000K |
| Warm white/Flux: | 3000K±200K / 935 Lm |
| Cool white/Flux: | 5000K±300K / 1170 Lm |
| Beam Angle: | 20° |
| Size: | ∮98x H65mm |
| Cut-out size: | ∮88mm |
| Color: | White |
Specifications
Size

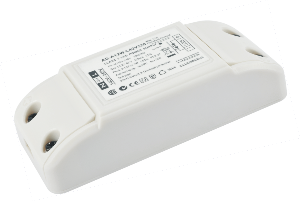

Driver
9A136-Z00
Input: AC100~240V / 50~60Hz
Output: DC25~45V / 320mA
Max. 9~12W
Size: 102 x 66 x 30mm
Certification: CE
Photometric Data
Substitute
