D8-016
Technical Specifications
Model: | D8-016 |
Input: | DC19.2V |
Current: | 350mA±5% |
Brand: | OSRAM |
LED Quantity: | 6 Pcs |
LED Power: | 7W |
CCT: | 2700K~6000K |
Warm white/Flux: | 3000K±200K / 625 Lm |
Cool white/Flux: | 5000K±300K / 780 Lm |
Beam Angle: | 20° |
Size: | ∮85x H70mm |
Cut-out size: | ∮78mm |
Color: | White |
Size
![](/attachments/2014/08/14087091309e6c8082dfa010d1.png)

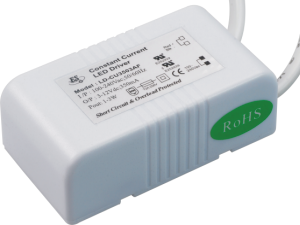

Driver
9A088-Z00
Input: AC100~240V / 50~60Hz
Output: DC3~36V / 350mA
Max.1W x8
Size:65 x 34 x 24mm
Certification: CE . UL
Photometric Data
![](/attachments/2014/08/140781084350becc13ab4fa5d8.png)
Substitute
![](/attachments/2014/08/14087123942c4e2d908ed54a43.png)
