R2-002

Available for custom ligjht color.Ultra thin,good heat dissipation,low power,low heat.Flat and even light,beautiful and compact appearance.Frameless/4mm narrow frame,widen the light distribution area,reduce the drak blocked by frame.

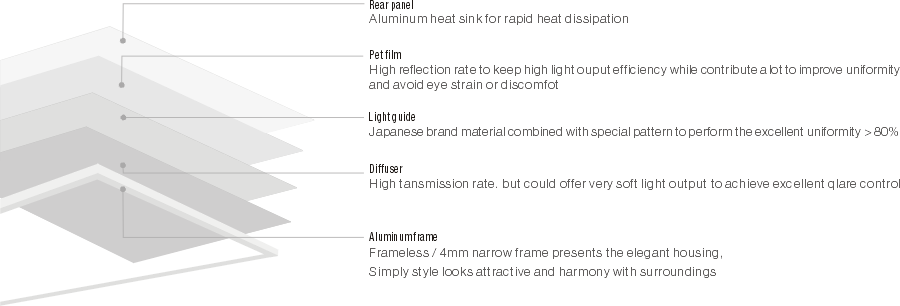

With good quality reflective panel,high efficiency light guide and aluminum alloy material,the light is even and soft.

Technical Specifications
Model:R2-002
Input:AC100-240V,50/60Hz
Brand:Jufei
LED Quantity:336pcs
LED Power:40W
Power CONS:45W
Warm white/Flux:3000K±200K
Natural/Flux:4000K±300K
Cool white/Flux:5000K±200K
CRI:CRI 80
Beam Angle:120°
Size:L1200xW300xH15
Color:White
IP:IP20
Certification:CE,RoHs,ISO9001
Service life:40000h
Specifications
40W Patent
  • sqaure panel light,suspended led panel light,led panel light,square led panel light,narrow frame led panel light
  • sqaure panel light,suspended led panel light,led panel light,square led panel light,narrow frame led panel light
  • sqaure panel light,suspended led panel light,led panel light,square led panel light,narrow frame led panel light

Product Descriptions

Available for custom ligjht color.Ultra thin,good heat dissipation,low power,low heat.Flat and even light,beautiful and compact

appearance.Frameless/4mm narrow frame,widen the light distribution area,reduce the drak blocked by frame.

With good quality reflective panel,high efficiency light guide and aluminum alloy material,the light is even and soft.




Size


Photometric Data
