D8-012
Technical Specifications
| Model: | D8-012 |
| Input: | DC38.4V |
| Current: | 350mA±5% |
| Brand: | OSRAM |
| LED Quantity: | 12 Pcs |
| LED Power: | 14.5W |
| CCT: | 2700K~6000K |
| Warm white/Flux: | 3000K±200K / 1250 Lm |
| Cool white/Flux: | 5000K±300K / 1560 Lm |
| Beam Angle: | 20° |
| Size: | ∮118x H72mm |
| Cut-out size: | ∮108mm |
| Color: | White |
Specifications
Size

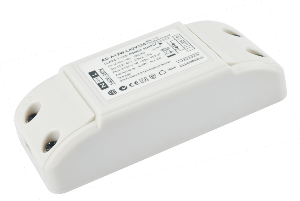

Driver
9A136-Z00
Input: AC100~240V / 50~60Hz
Output: DC25~45V / 320mA
Max. 9~12W
Size: 102 x 66 x 30mm
Certification: CE
Photometric Data
Substitute
