D8-011
Technical Specifications
Model: | D8-011 |
Input: | DC3.4V |
Current: | 700mA±5% |
Brand: | OSRAM |
LED Quantity: | 1 Pc |
LED Power: | 2.5W |
CCT: | 2700K~6000K |
Warm white/Flux: | 3000K±200K / 175 Lm |
Cool white/Flux: | 5000K±300K / 220 Lm |
Beam Angle: | 20° |
Size: | ∮52x H31mm |
Cut-out size: | ∮45mm |
Color: | White |
Size
![](/attachments/2014/08/1408708879230187d23b3b7c05.png)

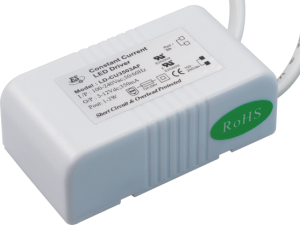

Driver
9A094-Z00
Input:AC100~240V / 50~60Hz
Output:DC3~12V /700mA
Max.3W x 2
Size:65 x 34 x 24mm
Certification: CE . UL
Photometric Data
![](/attachments/2014/08/1407810282a9cb00f7d6048804.png)
Substitute
![](/attachments/2014/08/1407810236db09bfd3de635d46.png)
