D2-208
Technical Specifications
| Model: | D2-208 |
| Input: | DC36V |
| Current: | 500mA±5% |
| Brand: | SHARP |
| LED Quantity: | 1 Pc |
| LED Power: | 18W |
| CCT: | 2700K~6000K |
| Warm white/Flux: | 3000K ±200K / 1700 Lm |
| Cool white/Flux: | 5000K ±300K / 1870 Lm |
| Beam Angle: | 110° |
| Size: | ∮110x H72mm |
| Cut-out size: | ∮100mm |
| Color: | White |
Specifications
Size

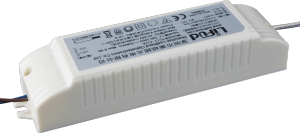

Driver
9A177-Z00
Input: AC100~240V / 50~60Hz
Output: DC36V /500mA
Max. 18W
Size: 115 x 45 x 27mm
Certification: CE
Photometric Data
