D2-010
Technical Specifications
| Model: | D2-010 |
| Input: | DC37V |
| Current: | 950mA±5% |
| Brand: | SHARP |
| LED Quantity: | 1 Pc |
| LED Power: | 35W |
| CCT: | 2700K~6000K |
| Warm white/Flux: | 3000K ±200K / 3320 Lm |
| Cool white/Flux: | 5000K ±300K / 3640 Lm |
| Beam Angle: | 40° |
| Size: | ∮135x H125mm |
| Cut-out size: | ∮125mm |
| Color: | White |
Specifications
Size

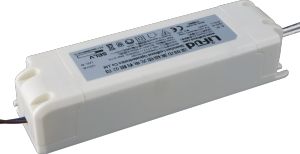

Driver
9A179-Z00
Input: AC100~240V / 50~60Hz
Output: DC37V /950mA
Max. 35W
Size: 140 x 45 x 27mm
Certification: CE
Photometric Data
