D2-519

Technical Specifications
Model:D2-519
Input:DC60V
Current:350mA±5%
Brand:OSRAM
LED Quantity:20 Pcs
LED Power:20W
CCT:2700K~6000K
Warm white/Flux:3000K±200K / 1630 Lm
Cool white/Flux:5700K±300K / 1780 Lm
Beam Angle:200°

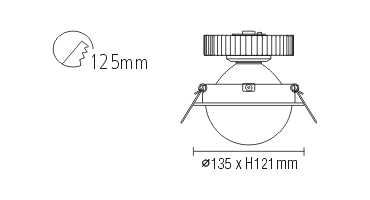

Size:∮135 x H121mm
Cut-out size:∮125mm
Color:White
Specifications
20W
  • Wide Beam Angle, flood beam angle, round panel light, down light with integrated power supply

Size

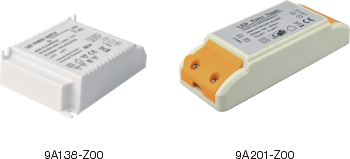

Driver

9A138-Z00 / 9A201-Z00

Input: AC200~240V / 50/60Hz
Output: DC45~92V / 350mA
Max. 15~28W
Size: 86 x 58 x 25mm / 115 x 45 x 27mm
Certification: CE , UL

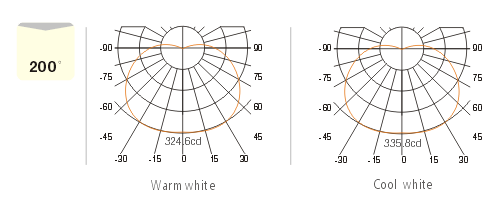

Photometric Data
