Wide Beam Angle, flood beam angle, round panel light, down light with integrated power supply-AIXENLITE

D2-518

Technical Specifications
Model:D2-518
Input:DC42V
Current:350mA±5%
Brand:OSRAM
LED Quantity:14 Pcs
LED Power:14W
CCT:2700K~6000K
Warm white/Flux:3000K±200K / 1120 Lm
Cool white/Flux:5700K±300K / 1230 Lm
Beam Angle:200°

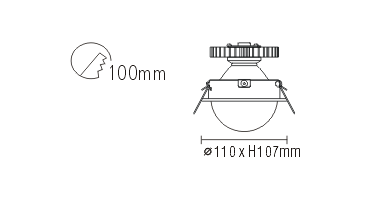

Size:∮110 x H107mm
Cut-out size:∮100mm
Color:White
Specifications
14W
  • Wide Beam Angle, flood beam angle, round panel light, down light with integrated power supply

Size

Driver

9A136-Z00 / 9A200-Z00

Input: AC200~240V / 50/60Hz
Output: DC25~42V / 320mA
Max. 9~12W
Size: 86 x 58 x 25mm / 115 x 45 x 27mm
Certification: CE ,UL

Photometric Data
