D5-019

Technical Specifications
Model:D5-019
Input:DC28.8V
Current:350mA±5%
Brand:OSRAM
LED Quantity:9 Pcs
LED Power:11W
CCT:2700K~6000K
Warm white/Flux:3000K±200K / 935 Lm
Cool white/Flux:5000K±300K / 1170 Lm
Beam Angle:20°

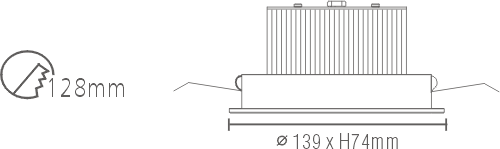

Size:∮139 x H74mm
Cut-out size:∮128mm
Color:Silver
Specifications
11W
  • Spot down light, Ceiling light, Down light, Spot light, LED spot lights
  • Spot down light, Ceiling light, Down light, Spot light, LED spot lights

Size

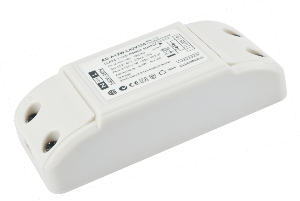

Driver

9A136-Z00

Input: AC100~240V / 50~60Hz
Output: DC25~45V / 320mA
Max. 9~12W
Size: 102 x 66 x 30mm
Certification: CE

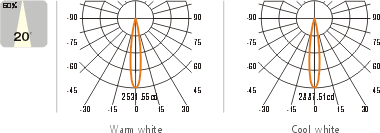

Photometric Data
