D5-016

Technical Specifications
Model:D5-016
Input:DC19.2V
Current:350mA±5%
Brand:OSRAM
LED Quantity:6 Pcs
LED Power:7W
CCT:2700K~6000K
Warm white/Flux:3000K±200K / 625 Lm
Cool white/Flux:5000K±300K / 780 Lm
Beam Angle:20°

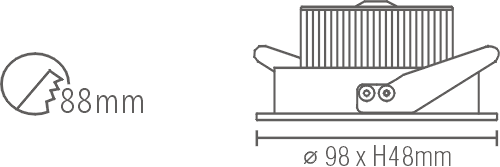

Size:∮98 x H48mm
Cut-out size:∮88mm
Color:Silver
Specifications
7W
  • Spot down light, LED spot lights, Ceiling light, Spot lights manufacture, Spot light factory
  • Spot down light, LED spot lights, Ceiling light, Spot lights manufacture, Spot light factory

Size

Driver

9A088-Z00

Input: AC100~240V / 50~60Hz
Output: DC3~36V / 350mA
Max.1W x8
Size:65 x 34 x 24mm
Certification: CE . UL

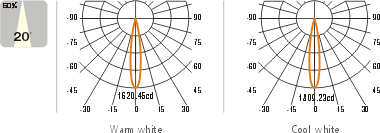

Photometric Data
