D3-003

Technical Specifications
Model:D3-003
Input:DC10.2V
Current:700mA±5%
Brand:OSRAM
LED Quantity:3 Pcs
LED Power:7.5W
CCT:2700K~6000K
Warm white/Flux:3000K±200K / 530 Lm
Cool white/Flux:5000K±300K / 660 Lm
Beam Angle:20°
Size:∮85 x H70mm
Cut-out size:∮75mm
Color:Silver
Specifications
7.5W
  • Led spot light factory, Spot light factory, Spot lights manufacture, LED spot lights, Spot down light
  • Led spot light factory, Spot light factory, Spot lights manufacture, LED spot lights, Spot down light
  • Led spot light factory, Spot light factory, Spot lights manufacture, LED spot lights, Spot down light
  • Led spot light factory, Spot light factory, Spot lights manufacture, LED spot lights, Spot down light

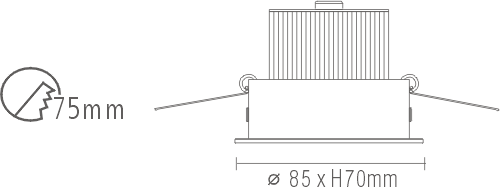

Size

Driver

9A095-Z00

Input: AC100~240V / 50~60Hz
Output: DC3~21V /700mA
Max.3W x 3
Size: 65 x 34 x 24mm
Certification: CE . UL

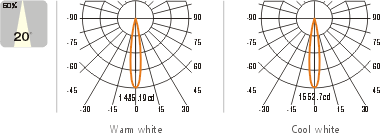

Photometric Data
