D5-013

Technical Specifications
Model:D5-013
Input:DC9.6V
Current:350mA±5%
Brand:OSRAM
LED Quantity:3 Pcs
LED Power:3.5W
CCT:2700K~6000K
Warm white/Flux:3000K±200K / 310 Lm
Cool white/Flux:5000K±300K / 390 Lm
Beam Angle:20°

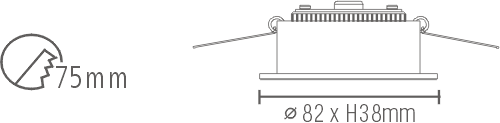

Size:∮82 x H38mm
Cut-out size:∮75mm
Color:Silver
Specifications
3.5W
  • Down light, Spot down light, LED spot lights, Spot light factory, Led spot light factory
  • Down light, Spot down light, LED spot lights, Spot light factory, Led spot light factory

Size

Driver

9A087-Z00

Input:AC100~240V / 50~60Hz
Output:DC3~12V / 350mA
Max.1W x3
Size:65 x 34 x 24mm
Certification: CE . UL

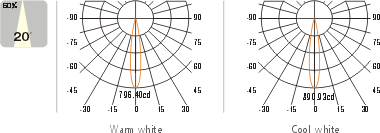

Photometric Data
