A1+C1-212
Technical Specifications
| Model: | A1+C1-212 |
| Input: | AC /DC12V±5% |
| Brand: | OSRAM |
| LED Quantity: | 12 Pcs |
| LED Power: | 14.5W |
| CCT: | 2700K~6000K |
| Warm white/Flux: | 3000K±200K |
| Cool white/Flux: | 5000K±300K |
| Beam Angle: | 20° |
| Size: | ∮118 x H147mm |
| Color: | Silver |
Specifications
Size

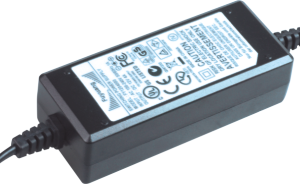

9A122-Z00
Input: AC100~240V / 50~60Hz
Output:DC12V / 4A(Max)
Max.48W
Size:97 x 42 x 28mm
Certification: CE . UL . GS

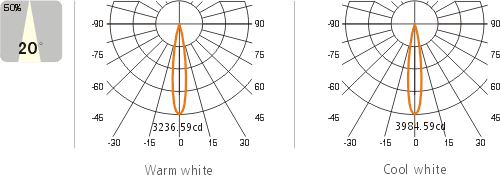

Photometric Data
Accessories
 |
 |
 |
 |
|
|
|
Item No.86041 / 43 / 45 Input:25A / 300W Material:PC+Copper+Aluminum Color:Silver Size:1m / 1.5m / 2m Packing:1 P CS / Pack |
Item No.86023 / 25 Input:25A / 300W Material:PC+Copper+Aluminum Color:Silver Size:1.5m / 2m Packing:1 P CS / Pack |
