P2-702

Technical Specifications
Model:P2-702
Input:DC12V±5%
LED Quantity:18 Pcs (5630)
LED Power:7W
Warm white/Flux:3000K±200K
Cool white/Flux:5000K±300K
Beam Angle:120°
Size:L300 x W20 x H15mm
Color:Silver
Specifications
7W
  • Led lighting bar,Led strip light,Led linear light ,Lighting bar,Strip lights ,
  • Led lighting bar,Led strip light,Led linear light ,Lighting bar,Strip lights ,

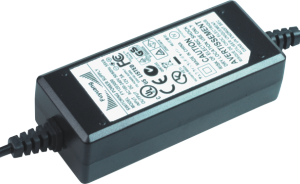

Driver

9A121-Z00

Input: AC100~240V / 50~60Hz
Output:DC12V / 2A
Max.24W
Size: 102 x 42 x 28mm
Certification: CE . UL . GS

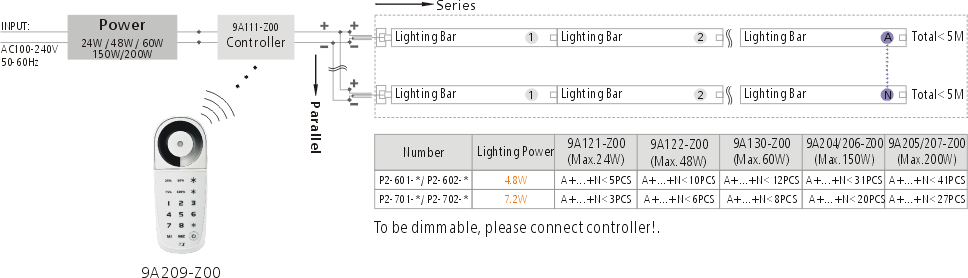

Electrical Connection Drawing
