D2-516

Technical Specifications
Model:D2-516
Input:DC38.4V
Current:350mA±5%
Brand:OSRAM
LED Quantity:36 Pcs
LED Power:14.5W
CCT:2700K~6000K
Warm white/Flux:3000K±200K / 1405 Lm
Cool white/Flux:5000K±300K / 1510 Lm
Beam Angle:80°
Size:∮110 x H73mm
Cut-out size:∮100mm
Color:White
Specifications
14.5W
  • flood beam angle, own light with integrated power supply, round panel light, wide beam angle
  • flood beam angle, own light with integrated power supply, round panel light, wide beam angle

Size

Driver

9A136-Z00

Input: AC100~240V / 50~60Hz
Output: DC25~45V / 320mA
Max. 9~12W
Size: 102 x 66 x 30mm
Certification: CE

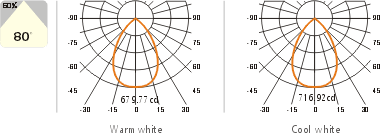

Photometric Data
