D2-504

Technical Specifications
Model:D2-504
Input:DC54V
Current:350mA±5%
Brand:OSRAM
LED Quantity:20 Pcs
LED Power:20W
CCT:2700K~6000K
Warm white/Flux:3000K±200K / 1340 Lm
Cool white/Flux:5000K±300K / 1560 Lm
Beam Angle:80°
Size:∮135 x H82mm
Cut-out size:∮125mm
Color:White
Specifications
20W
  • flood beam angle, own light with integrated power supply, round panel light, wide beam angle

Size

Driver

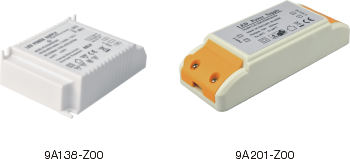

9A138-Z00 / 9A201-Z00

Input: AC200~240V / 50/60Hz
Output: DC45~65V / 320mA
Max. 15~28W
Size: 86 x 58 x 25mm / 115 x 45 x 27mm
Certification: CE , UL

Photometric Data
